What are linked reads

Linked reads are short read (e.g. Illumina) data. What makes them different is that they contain an added DNA segment (“barcode”) that lets us associate sequences as having originated from a single DNA molecule. That means if we have 4 sequences from a library that all contain the same added barcode, then we infer that they must have originated from the same original DNA molecule. Different barcode = different molecule of origin. If the sequences would map to the same genomic region during sequence alignment, we would know that those sequences with the same barcode originated from a single DNA fragment from a single homologous chromosome from a single cell. That’s right, built-in phase information.

What linked reads look like

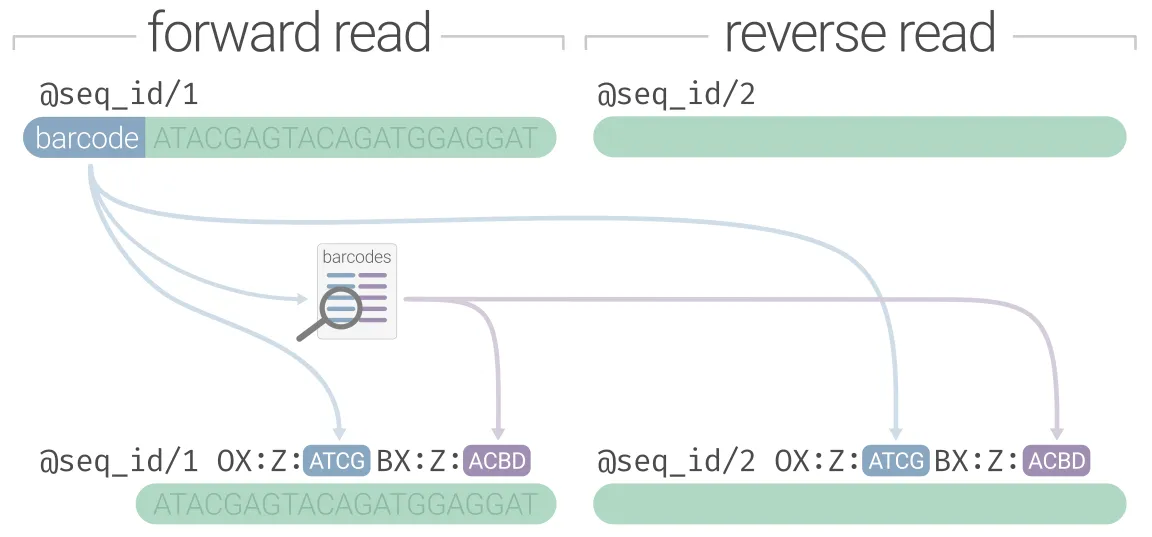

Linked-read data is sequence data as you would expect it, encoded in a FASTQ file. The first processing step of linked-read data is demultiplexing to split the raw Illumina-generated batch FASTQ file into samples (if multisample) and identify/validate the linked-read barcode on every sequence. For 10X data, the barcode would stay inline with the sequence (to make it LongRanger compatible), but for other varieties (haplotagging, stLFR, etc.) you would also remove the barcode from the sequence and preserve it somewhere in the read header. The demultiplexing process is generally similar between non-10X linked-read technologies: a nucleotide barcode sequence gets identified and moved from the sequence line to the read header with some kind of platform-specific notation. The diagram below preserves the nucleotide barcode under the OX:Z tag and recodes it under BX:Z using the haplotagging “ACBD” segment format, however it would also be valid to just keep the nucleotide barcode under BX:Z. Linked-read software is variable in its flexibility towards barcode formatting.

Linked-read varieties

There are a handful of linked-read sample preparation methods, but that’s largely an implementation detail. All of those methods are laboratory procedures to take genomic DNA and do the necessary modifications to fragment long DNA molecules, tag the resulting fragments with the same DNA barcode, then add the necessary Illumina adapters. It’s not unlike the different RAD flavors (e.g. EZrad, ddRAD, 2B-rad)– they all give you RAD data in the end, but vary in how you get there in terms of cost and bench time. We obviously subscribe to haplotagging :grin:.

It’s worth describing the obvious differences of the raw (FASTQ) data. Knowing these details might help you make sense of compatibilties/incompatibilities for software, or how you can convert between styles. For more information, read this resource. We strongly advocate for using Standard format.

Type	Location	Format	Invalid Encoding	Example
Standard	BX:Z and VX:i tags	any	VX:i:0	BX:Z:31_442_512 VX:i:1
Haplotagging	BX:Z tag	ACBD	00 segment	BX:Z:A04C54B96D11
stLFR	end of sequence ID	#1_2_3	0 segment	@A003432423434:1:324#12_432_1
TELLseq	end of sequence ID	:ATCG	N	@A003432423434:1:324:TTACCACGAGG
10X	R1 read	ATCG	N	AGGTTGGGTAAGATA...
